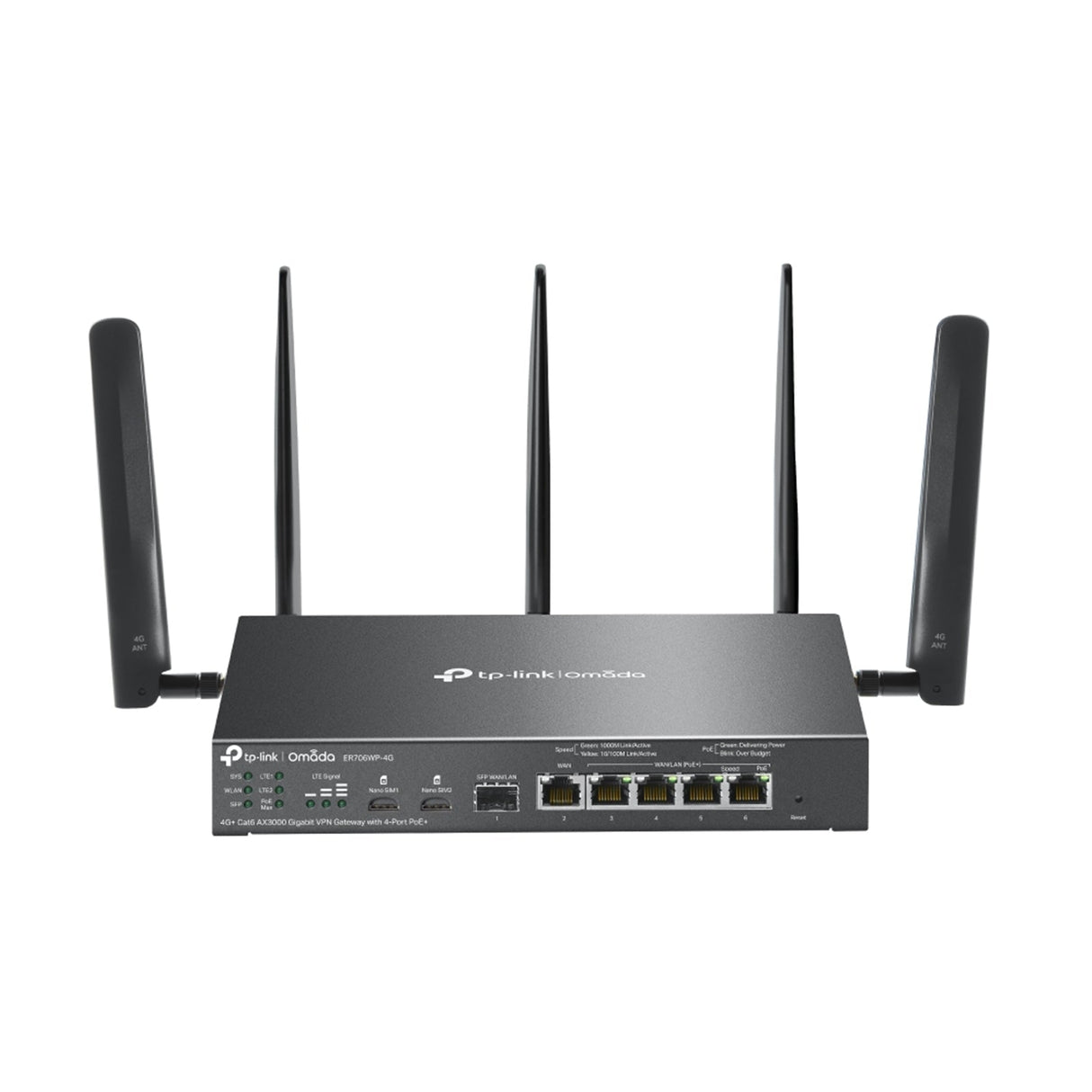

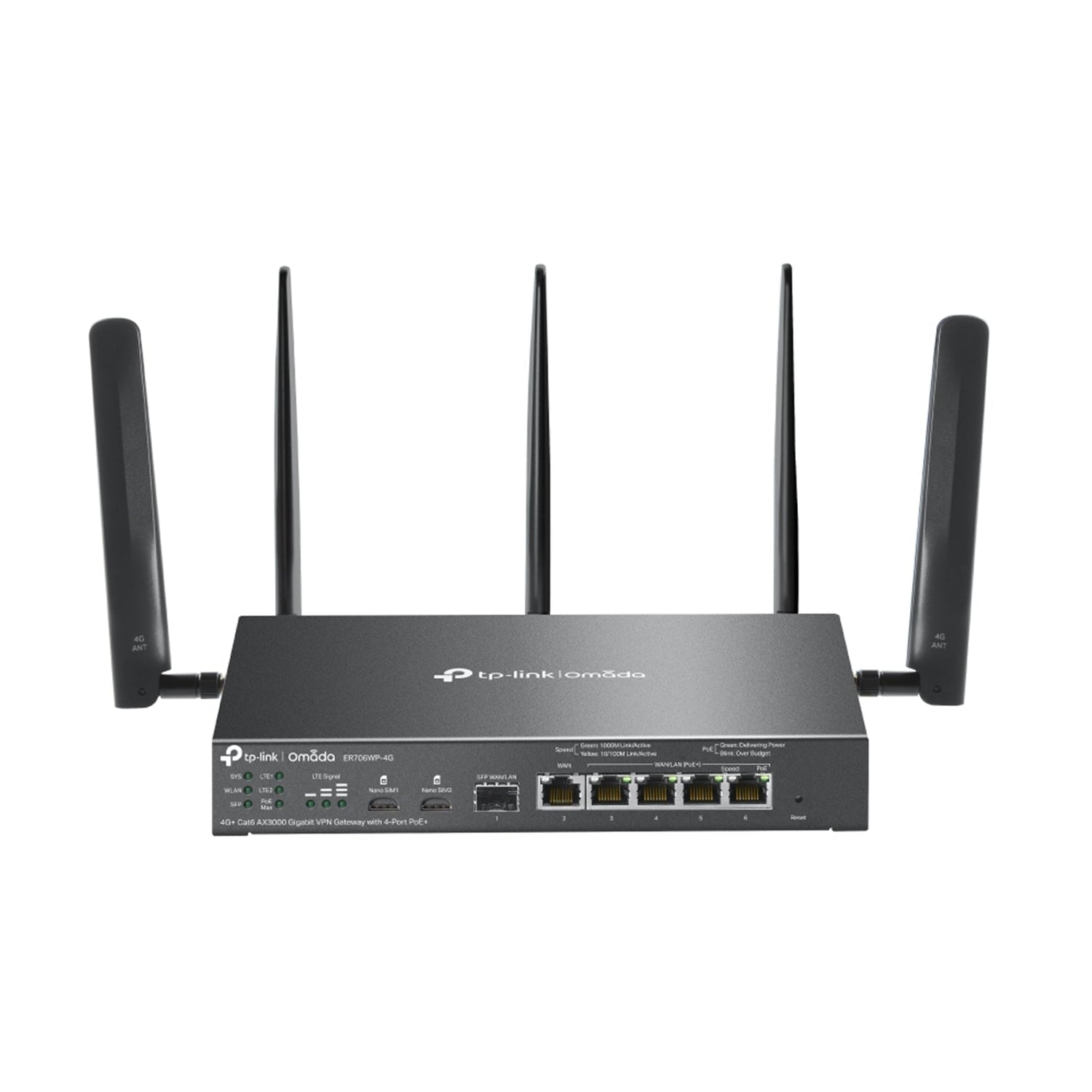

TP-Link Omada ER706WP-4G AX3000 4G+ Cat6 Gigabit VPN Gateway with 4-Port PoE+
The TP-Link Omada ER706WP-4G is a powerful AX3000 4G+ Cat6 Gigabit VPN Gateway designed for high-speed connectivity, secure networking, and flexible deployment. With dual Nano SIM support, PoE+ output, and centralized Omada management, it delivers an all-in-one solution for modern networks.
Key Features
-
4G+ Cat6 Connectivity*
- Insert a Nano SIM card to enjoy downlink speeds of up to 300 Mbps and uplink speeds of up to 50 Mbps
- Supports 2x Nano SIM cards (4G+ Cat6)
-
Not compatible with AT&T's Text & Data plans** in the US
-
AX3000 Dual-Band WiFi 6*
- 5 GHz: Up to 2402 Mbps (HE160)
-
2.4 GHz: Up to 574 Mbps
-
High-Speed Wired Networking
- 1× Gigabit SFP WAN/LAN port
- 1× Gigabit WAN port
- 4× Gigabit WAN/LAN ports
-
5 Gigabit Ethernet ports total for high-speed wired connectivity
-
4-Port PoE+ Power Supply
- 4 PoE+ output ports
-
45 W total PoE budget
-
High-Gain Detachable Antennas
- 3× dual-band detachable WiFi antennas
- 2× omnidirectional detachable LTE antennas
-
Designed to extend and concentrate WiFi and LTE signals
-
High-Security VPN
-
Supports IPSec, SSL, WireGuard, OpenVPN, PPTP, and L2TP VPN
-
Centralized Omada Management
- Cloud access and Omada app support
- Compatible with Omada Cloud-Based Controller, Hardware Controllers (OC300, OC200), and Software Controller
-
Zero-Touch Provisioning and unified configuration
-
Omada Mesh Support
- Seamlessly connects to EAPs that support mesh technology
4G Network Specifications (EU)
4G Network Type
-
4G LTE-FDD Bands
- B1/B3/B5/B7/B8/B20/B28/B32
-
Frequencies: 2100/1800/850/2600/900/800/700/1450 MHz
-
4G LTE-TDD Bands
- B38/B40/B41
-
Frequencies: 2600/2300/2500 MHz
-
3G Bands (DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA)
- B1/B3/B5/B8
- Frequencies: 2100/1800/850/900 MHz
Carrier Aggregation (EU)
- B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41
- B3+B3/B5/B7/B8/B20/B28/B38/B40/B41
- B5+B5/B7/B38/B40/B41
- B7+B7/B8/B20/B28/B32
- B8+B32/B38/B40/B41
- B20+B32/B38/B40
- B28+B32/B38/B40/B41
- B38+B38
- B40+B40
- B41+B41
Security & Protection
Deep Packet Inspection (DPI)
- Application control via DPI
- Updated application library
IDS/IPS
- Signature-based IPS/IDS threat detection
Access Control & Filtering
- Source/Destination IP-based access control
- Web Group Filtering
- URL Filtering
Web Security & ARP Protection
- ARP Inspection
- Sending GARP packets
- ARP Scanning
- IP-MAC Binding
Attack Defense
- TCP/UDP/ICMP flood defense
- Block TCP scan (Stealth FIN/Xmas/Null)
- Block Ping from WAN
Hardware Specifications
| Feature |
Details |
| Interfaces |
1× Gigabit SFP WAN/LAN, 1× Gigabit WAN, 4× Gigabit WAN/LAN |
| Network Media |
10BASE-T: UTP Cat 3/4/5 (Max 100 m), STP (Max 100 m) |
|
100BASE-TX: UTP Cat 5/5e (Max 100 m), STP (Max 100 m) |
|
1000BASE-T: UTP Cat 5/5e/6 (Max 100 m) |
| Buttons |
Reset button |
| Power Supply |
4 PoE+ output ports, 45 W PoE budget |
| Flash |
256 MB NAND |
| DRAM |
512 MB DDR4 |
| LEDs |
SYS, WLAN, SFP, LTE1, LTE2, PoE Max, LTE Signal, WAN, WAN/LAN |
| Dimensions (W×D×H) |
8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm), antenna dimensions not included |
| Mounting |
Desktop / Wall-Mounting / Rackmount |
| Max Power Consumption |
64.9 W with PoE Max; 19.8 W without PoE |
Antenna Configuration
-
WiFi Antennas
- Three dual-band detachable antennas
- 5 GHz: 5.5 dBi
-
2.4 GHz: 4.5 dBi
-
LTE Antennas
- Two 4.0 dBi omnidirectional detachable antennas
Wireless Features
Performance
| Metric |
Throughput / Rate |
| IPS Throughput (TCP) |
229 Mbps |
| IPS Throughput (UDP) |
188 Mbps |
| DPI Throughput (TCP) |
933 Mbps |
| DPI Throughput (UDP) |
927 Mbps |
| GRE Unencrypted |
545.3 Mbps |
| GRE Encrypted |
282.6 Mbps |
| WireGuard VPN |
387.7 Mbps |
| Concurrent Sessions |
150,000 |
| New Sessions per Second |
5,100 |
| NAT (Static IP) |
947.1 Mbps / 940.1 Mbps |
| NAT (DHCP) |
949.2 Mbps / 941.1 Mbps |
| NAT (PPPoE) |
942.6 Mbps / 941.1 Mbps |
| NAT (L2TP) |
875.4 Mbps / 892.0 Mbps |
| NAT (PPTP) |
881.2 Mbps / 895.8 Mbps |
| IPsec ESP-SHA1-AES256 |
652.2 Mbps |
| IPsec ESP-SHA256-AES256 |
654.4 Mbps |
| IPsec ESP-SHA384-AES256 |
646.5 Mbps |
| IPsec ESP-SHA512-AES256 |
670.5 Mbps |
| OpenVPN |
115.5 Mbps |
| L2TP Unencrypted |
990.0 Mbps |
| L2TP Encrypted |
475.0 Mbps |
| PPTP Unencrypted |
1177.9 Mbps |
| PPTP Encrypted |
177.4 Mbps |
| SSL VPN |
122.5 Mbps |
| 66 Byte Packet Forwarding Rate |
1,453,489 pps / 1,453,488 pps |
| 1518 Byte Packet Forwarding Rate |
81,274 pps / 91,275 pps |
Basic Network Functions
Advanced Routing & Bandwidth Management
NAT & Session Control
-
NAT Features
- One-to-One NAT
- Multi-Net NAT
- Virtual Server
- Port Triggering
- NAT-DMZ
- FTP/H.323/SIP/IPSec/PPTP ALG
-
UPnP
-
Session Limit
- IP-based session limit
Comprehensive VPN Support
-
GRE
-
Available only in Standalone Mode
-
SSL VPN
-
50 tunnels
-
IPsec VPN
- 100 IPsec VPN tunnels
- LAN-to-LAN, Client-to-LAN
- Main, Aggressive negotiation modes
- DES, 3DES, AES128, AES192, AES256 encryption
- IPsec Failover
- IKE v1/v2
- MD5, SHA1, SHA2-384, SHA2-512 authentication
- NAT Traversal (NAT-T)
- Dead Peer Detection (DPD)
-
Perfect Forward Secrecy (PFS)
-
PPTP VPN
- PPTP VPN Server
- PPTP VPN Client (10)
- 50 tunnels
-
PPTP with MPPE encryption
-
L2TP VPN
- L2TP VPN Server
- L2TP VPN Client (10)
- 50 tunnels
-
L2TP over IPsec
-
OpenVPN
- OpenVPN Server
- OpenVPN Client (5)
- 55 OpenVPN tunnels
- “Certificate + Account” mode
-
Full Mode
-
WireGuard VPN
- 20 tunnels
Authentication & Captive Portal
Omada Management & Cloud Features
Management & Maintenance
- Web Management Interface (HTTP/HTTPS)
- Remote Management
- Export & Import Configuration
- SNMP v1/v2c/v3
- Diagnostics (Ping & Traceroute)
- NTP Synchronization
- Port Mirroring
- CLI (only in Standalone Mode)
- Syslog Support
- Zero-Touch Provisioning
Additional Management Features
- Automatic Device Discovery
- Intelligent Network Monitoring
- Abnormal Event Warnings
- Unified Configuration
- Reboot Schedule
- Captive Portal Configuration
Default Network Services
-
Web Server
- Manage and configure device through HTTP/HTTPS
-
Port: 80/443, Protocol: TCP
-
TDP Server
- Device discovery
-
Port: 20003, Protocol: UDP
-
DHCP Server
- Handle DHCP packets
-
Port: 67, Protocol: UDP
-
DNS
- Handle DNS packets
- Port: 53, Protocol: TCP/UDP
Certifications
Package Contents
- ER706WP-4G
- Power Adapter
- Quick Installation Guide
System Requirements
- Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7/8/8.1/10/11
- MAC OS
- NetWare
- UNIX
- Linux
Environmental Specifications
-
Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
-
Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
-
Operating Humidity: 10% to 90% non-condensing
-
Storage Humidity: 5% to 90% non-condensing
* Actual speeds may vary.
* Not compatible with AT&T's Text & Data plans in the US.
** WiFi speed values are based on theoretical maximums.
